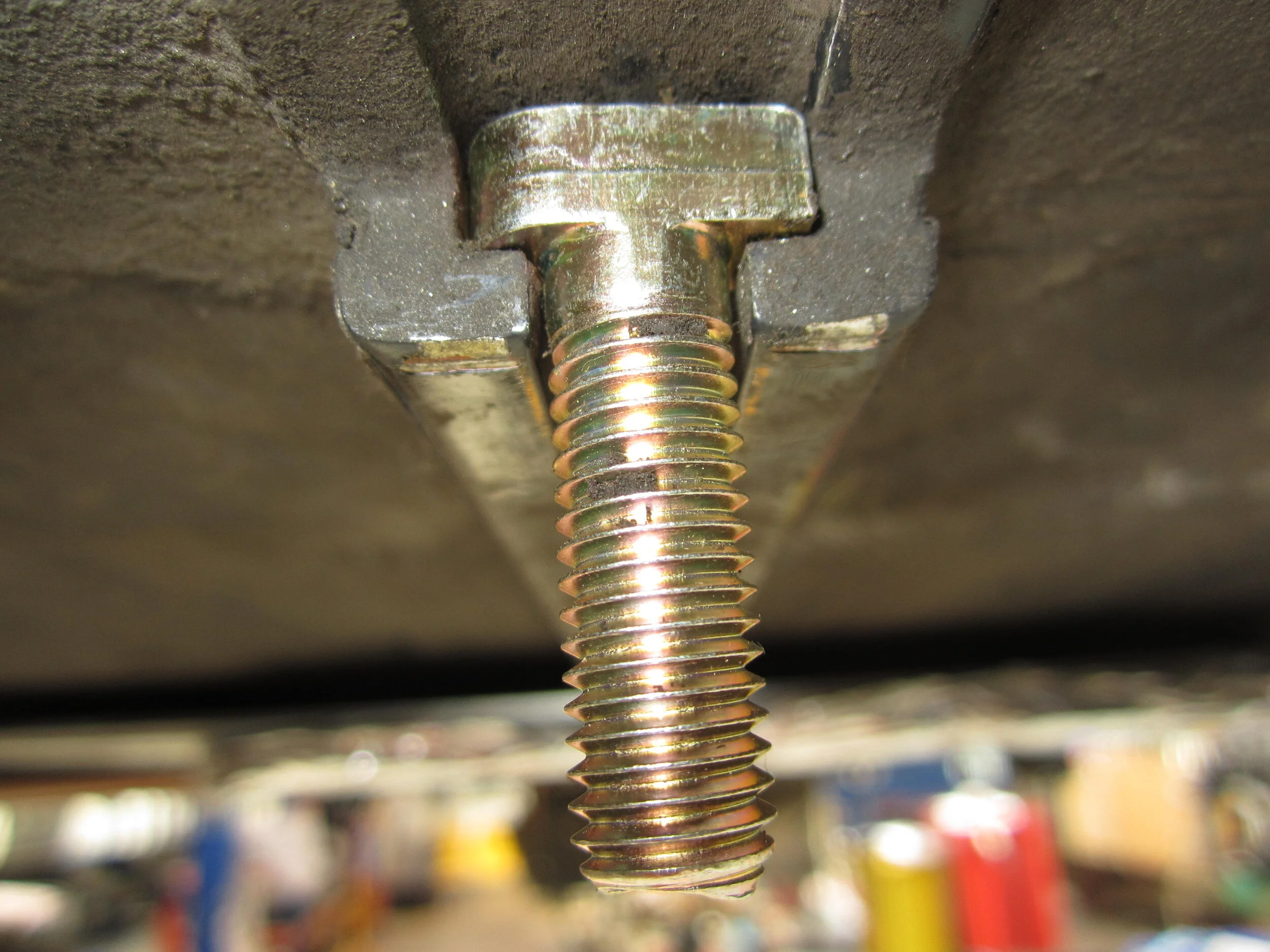

My range of M10 x 1/4 turn or Twist-in T-Bolts are designed for mounting cable support brackets, pipework brackets and small items of equipment to any extruded aluminium section C-Slot. They are simply inserted into the C-Slot and rotated to 90 degrees until they lock into position.
The Size 18 is suitable for a 19mm & 20mm C-Slot. - Stock Available
The Size 20 is suitable for a 21mm & 22mm C-Slot. - Out of Stock
The Size 22 is suitable for a 23mm & 24mm C-Slot. - Out of Stock
The Size 24 is suitable for a 25mm & 26mm C-Slot. - Out of Stock
Advantages:-

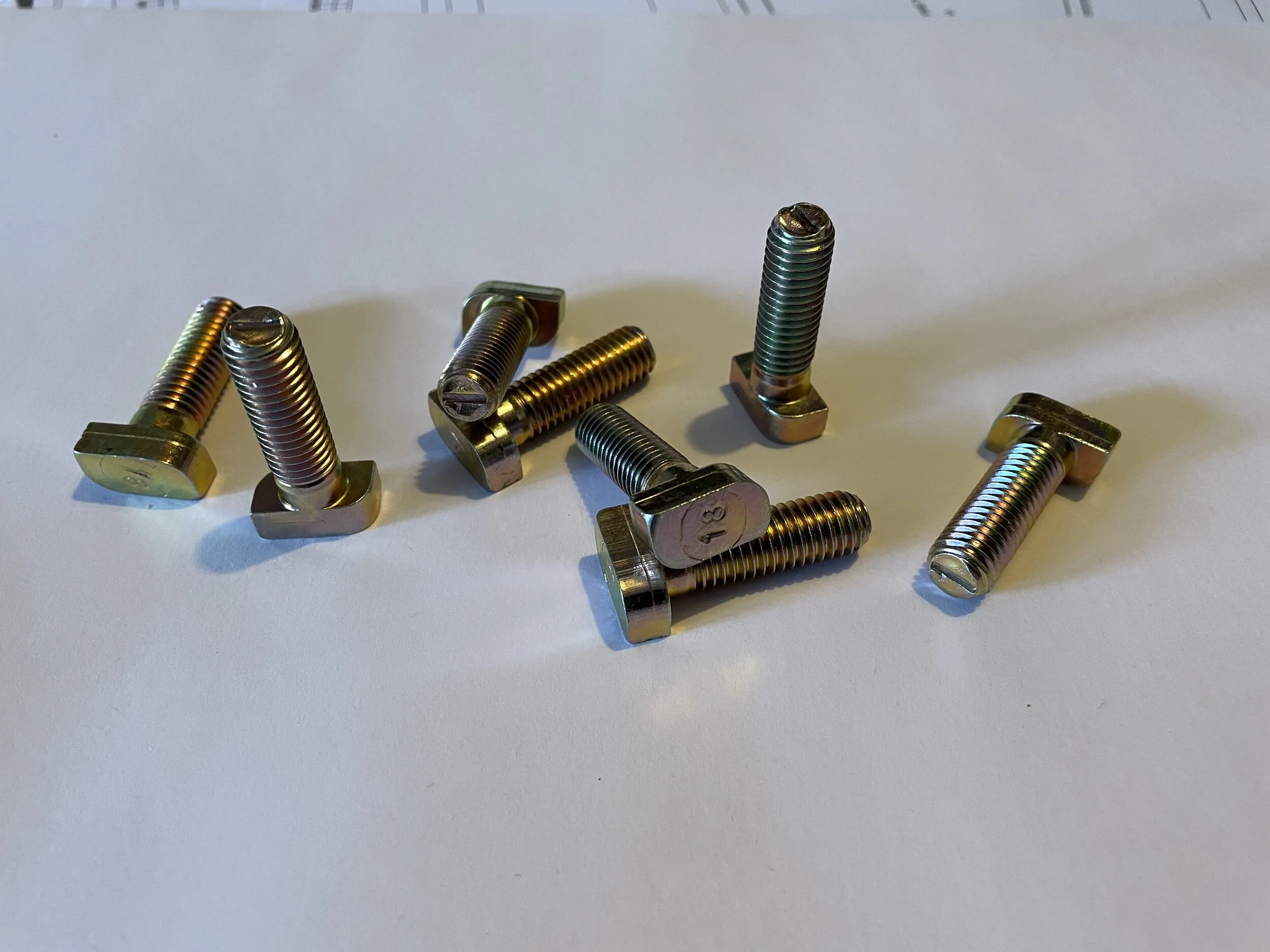

Line on stud end gives visible indication of T-Bolt Rotation position.

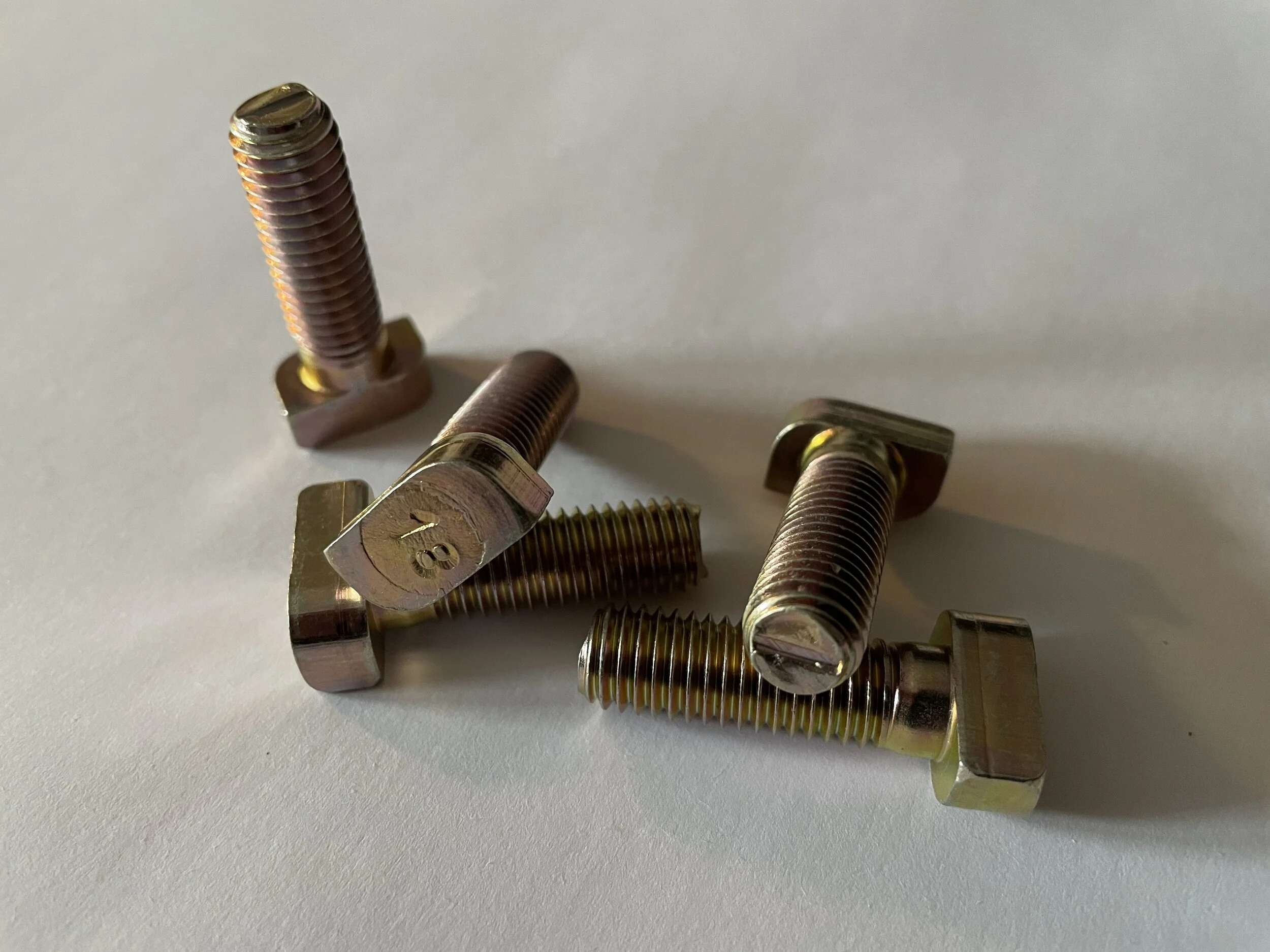

T-Bolt size (18, 20, 22 or 24) is stamped on the head of the T-Bolt.
T-Bolt locks in place due to the chamfer on T-Bolt and the Radius on the C-Slot.
Stud Size: M1O
Length: 32mm
Material : Steel to BS3692 Grade 8.8
Finish : WEP GEOMET (500A) SILVER/BLK 600 SS
Torque tighten to 55Nm
If you are unsure of your C-Slot size, contact me and I’ll send you a sample to try.
